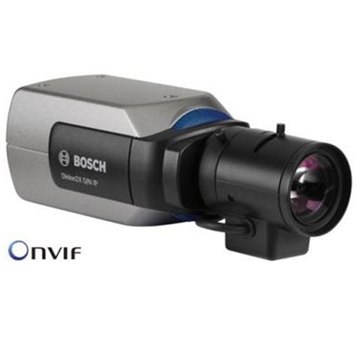

Bosch NBN-498-11P SD Fixed IP Camera,Dinion2X Day and Night Type,1/3"Progressive scan,H.264,2X Digital signal processing, Wide Dynamic Range,PAL,50Hz,PoE, MicroSD Slot



The progressive scan technology of a third of an inch type CCD day and night
20 bits of image processing technology
Wide dynamic range, 2 x dynamic engine and intelligent backlight compensation
Four stream
Flexible video options
The front-end intelligence technology
Accord with standard of ONVIF
Type of rated voltage
24 VAC NBN xp - 498-1 + / - 10%
12 VDC plus or minus 10%
Ethernet power supply
NBN 24 VAC - 498-2 xp plus or minus 10%
12 VDC plus or minus 10%
Ethernet power supply
Current consumption of 550 mA | 550 mA IVA (12 VDC) 550 mA | 650 mA IVA (24 VAC) 200 mA | 250 mA IVA 48 VDC (PoE)
6.6 W power consumption 6.6 W | IVA (12 VDC) | 9.7 8.2 W W IVA (24 VAC) 9.6 W (PoE 48 VDC)
sensors
A third of an inch CCD type, wide dynamic range, the double shutter
Effective image (PAL) 752 x 582 pixels
Effective image 768 x 494 pixels (NTSC)
video
H. 264 video compression (ISO/IEC 14496-10); M - JPEG, JPEG
Data transfer rate of 9.6 Kbps to 6 Mbps
Vertical resolution level x (PAL/NTSC ips)
4 cif 704 x 576/480 25/30 (ips)
CIF 352 x 288/240 25/30 (ips)
Overall IP delay at least 120 milliseconds, up to 240 milliseconds
GOP structure I, IP, IBBP
Each data frame rate (flow) 1 to 25/30 (PAL/NTSC) h. 2641 to 25/30 (PAL/NTSC) M - JPEG
Video output (only service mode)
Signal analog composite (NTSC or PAL), service only
The connector BNC, 75 ohms
Horizontal resolution 540 TV lines
Video signal to noise ratio of 50 dB
Reflectivity of 89% sensitivity (3200 K, scene, pro series)
The whole video (IRE (100)
Color lx (fc) 0.223 2.4
Color + 10 times 0.24 sensitivity lx (fc) 0.0223
Black and white lx (fc) 0.091 0.98
Black and white + 10 times 0.098 sensitivity lx (fc) 0.0091
Color, black and white, automatic day/night
6 kinds of preset programming mode
120 dB dynamic range (20 bits image processing)
SNR > 50 dB
Dynamic engine 2 x ultra dynamic, XF super dynamic, SmartBLC + 2 x dynamic
Smart backlight compensation (including 2 x the dynamic range), open/close
AGC (automatic gain control) can choose to open or close AGC (0 to 30 dB)
The white balance atw (2500-10000 k), automatic tracking keep and manual white balance
Automatic shutter [1/60] (1/50 to 1/50) (optional) automatic [1/60] (1/50 to 1/50) (to be automatic), no stroboscopic, fixed (optional)
Enhance sensitivity adjustable scope: close to 10 times
Automatic black level automatic continuous, closed
Dynamic noise reduction can choose, on/off automatically
Definition can select level of resolution enhancement
White peak inhibition on/off
Privacy cover four separate areas, fully programmable
Video Motion + mobile analysis or IVA
Test generator color bar 100%, gray-scale step 11, sawtooth 2 h, checker plate, cross hatching, UV plane
Synchronization can choose the internal locking or line lock
Mount CS type (lens out of 5 mm in length, 0.2 inches), type C base (compatible with an optional adapter ring)
Lens type automatic detection of hand control, DC and video aperture, and can rewrite the DC aperture driver: 50 largest mA continuous current video aperture: 11.5 VDC, 0.5 mm maximum 50 mA continuous current
Control through the soft key operation screen menu (multilingual)
audio
Standard g. 711 300 Hz to 3.4 kHz, 8 kHz sampling rate
SNR > 50 dB
Mono audio 1 road line input, 1 road mono line output
The connector is 3.5 mm stereo jack
Input signal lines typical resistance euro 9000, the biggest 5.5 Vpp
Signal circuit output 10000 euro 3.0 Vpp (typical), 32 ohms 2.3 Vpp (typical), 1.7 16 ohms Vpp (typical)
Alarm 2 road input
The connector clamp circuit (not isolation type make contact)
Activating voltage + 5 VDC and + 40 VDC (22000 + 3.3 VDC, the DC coupling pull-up resistor)
Relay output 1 road
Connector clamp circuit
Voltage VAC 30 or 40 + VDC maximum continuous current of 0.5 A, power 10 va
Data port RS - 485/232/422
Device Configuration through a Web browser or Configuration Manager
