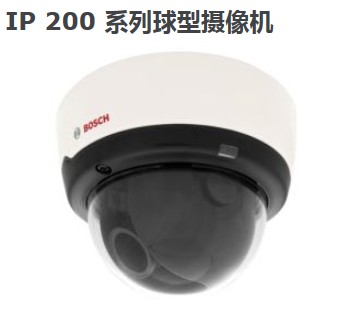

Bosch NDC-255-P SD Fixed IP Hemisphere Camera 2.8 to 10 Mm Zoom Lens, Manual zoom
Product Numbers:NDC-255-P
Price:0
Product introduction:Bosch NDC-255-P SD Fixed IP Hemisphere Camera 2.8 to 10 Mm Zoom Lens, Manual zoom
Bosch NDC-255-P SD Fixed IP Hemisphere Camera 2.8 to 10 Mm Zoom Lens, Manual zoom
Integrated network video monitoring system
To capture images of moving objects
Transport both h. 264 video stream and a M - JPEG video streaming
Accord with standard of ONVIF
Used for the front-end video MicroSD/SDHC card slot
Easy to connect
The input voltage + 12 VDC power supply or Ethernet
The maximum power consumption 4.1 watts
Quarter inch CMOS sensor type
Sensor 640 x 480 pixels
0.3 lux sensitivity
QVGA video resolution VGA
H. 264 video compression MP (Main Profile);H. 264 BP + (Baseline Profile Plus);M - JPEG
Frame rate 30/25 FPS: all the clarity
Lens type NDC - 255 - P: 2.8 to 10 mm, manual zoom DC aperture pro series to close the NDC - 225 - P: 4 mm prime lens, F1.5
Lens plate installation
Analog video output is only used to install the 2.5 mm jack
Short circuit or alarm input DC 5 v activation
Relay output maximum input rating 1 A 24 VDC/VAC
Built-in microphone audio input
Line input jack
Audio output circuit output jack
Two-way audio communication, full duplex
Audio compression g. 711
The memory card slot support up to 32 GB microSD/SDHC CARDS
Continuous recording video, video loop.Video alarm/event/schedule
Device configuration using a Web browser or PC monitoring software
Protocols HTTP, HTTPs and SSL, TCP, UDP, ICMP, RTSP, RTP and RTCP, IGMPv2 / v3, SMTP, POP3, FTP, DHCP client, ARP, DNS, DDNS, NTP, SNMP, UPnP
10/100 base-t Ethernet, automatic detection, half duplex/full duplex, RJ45
PoE accord with the standard IEEE 802.3 af
Diameter size: 135 mm (5.32 inch) height: 102 mm (4 inches)
Weight NDC - 255 - P: about 548 grams (1.21 pounds) of NDC - 225 - P: about 523 grams (1.16 pounds)
Working temperature in camera - 10 DHS C to + 50 DHS C (14 DHS F to + 122 DHS F)
Working temperature power 0 ° C to + 40 ° C (+ 32 ° F to 104 ° F) +
Storage temperature - 20 DHS C to + 70 DHS C (4 DHS F to + 158 DHS F)
Humidity 10% to 10% relative humidity (no condensation)
