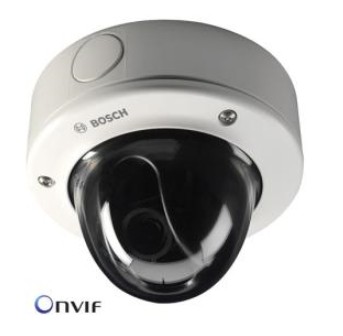

Bosch NDN-498V09-21PS SD Fixed IP Hemisphere Camera FlexiDome2X Day and Night Riot,1/3"Progressive Scan H.264,2X Digital Signal Processing, Wide Dynamic Range,9 to 22 Mm Zoom Lens,NTSC，60 Hz，PoE，Interface Install,MicroSD Slot
Product Numbers:NDN-498V09-21PS
Price:0
Product introduction:Bosch NDN-498V09-21PS SD Fixed IP Hemisphere Camera FlexiDome2X Day and Night Riot,1/3"Progressive Scan H.264,2X Digital Signal Processing, Wide Dynamic Range,9 to 22 Mm Zoom Lens,NTSC，60 Hz，PoE，Interface Install,MicroSD Slot
Bosch NDN-498V09-21PS SD Fixed IP Hemisphere Camera FlexiDome2X Day and Night Riot,1/3"Progressive Scan H.264,2X Digital Signal Processing, Wide Dynamic Range,9 to 22 Mm Zoom Lens,NTSC，60 Hz，PoE，Interface Install,MicroSD Slot
The progressive scan technology of a third of an inch type CCD day and night
20 bits of image processing technology
Wide dynamic range, 2 x dynamic engine and intelligent backlight compensation
Four stream
Flexible video options
The front-end intelligence technology
Accord with standard of ONVIF
The riot shell of high strength
Type of rated voltage
Xp VXX NDN - 498-1 to 24 VAC + 10%
12 VDC plus or minus 10%
Ethernet power supply
VXX NDN - 498-2 xp 24 VAC plus or minus 10%
12 VDC plus or minus 10%
Ethernet power supply
Current consumption of 550 mA | 550 mA IVA (12 VDC) 550 mA | 700 mA IVA (24 VAC), 200 mA (PoE 48 VDC)
6.6 W power consumption 6.6 W | IVA (12 VDC) | 10.4 8.2 W W IVA (24 VAC) 9.6 W (PoE 48 VDC)
sensors
A third of an inch CCD type, wide dynamic range, the double shutter
Effective image (PAL) 752 x 582 pixels
Effective image 768 x 494 pixels (NTSC)
video
H. 264 video compression (ISO/IEC 14496-10);M - JPEG, JPEG
Data transfer rate of 9.6 Kbps to 6 Mbps
Vertical resolution level x (PAL/NTSC ips)
4 cif 704 x 576/480 25/30 (ips)
CIF 352 x 288/240 25/30 (ips)
Overall IP delay at least 120 milliseconds, up to 240 milliseconds
GOP structure I, IP, IBBP
Frame rate 1 to 50/60 (PAL/NTSC) h. 2641 to 25/30 (PAL/NTSC) M - JPEG
Video output (only service mode)
Signal analog composite (NTSC or PAL), service only
The connector is 2.5 mm jack, 75 ohms
Horizontal resolution 540 TV lines
Video signal to noise ratio of 50 dB
Sensitivity (3200 K, scene reflectivity of 89%)
