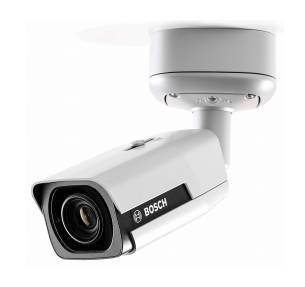

BOSCH nbe-5503-al Bullet 2MP HDR 2.7-12mm, automatic, IP67 IK10 IP Bullet camera for outdoor MP monitoring, rugged, with h. 265 and universal intelligent video analysis
BOSCH nbe-5503-al Bullet 2MP HDR 2.7-12mm, automatic, IP67 IK10 IP Bullet camera for outdoor MP monitoring, rugged, with h. 265 and universal intelligent video analysis
BOSCH nbe-5503-al Bullet 2MP HDR 2.7-12mm, automatic, IP67 IK10 IP Bullet camera for outdoor MP monitoring, rugged, with h. 265 and universal intelligent video analysis
U 5MP resolution, image quality up to 30 FPS, can provide high definition
Use autozoom/focus lenses, setup wizards, and preconfigured modes
Features, installation is easier
U multiple fully configurable h. 265 data streams
U is the built-in Essential for triggering related alerts and quickly retrieving data
Video Analytics,
U high dynamic range mode (120 dB) can present both bright and dark areas
Details in the domain
Bosch 5MP infrared bullet camera is a professional surveillance camera, can be carried
For high quality images to meet stringent security and monitoring network requirements.
This rugged bullet camcorder is a true day/night camcorder, regardless of white
Night or day, can provide excellent performance. Built-in infrared LED lights are provided
Excellent night surveillance performance, in the dark can view the distance of 60 meters (196
An object at (feet).
System overview
Outdoor bullet camera with automatic zoom lens
Sturdy aluminum housing provides a high degree of mounting flexibility. The cameras are in bad shape
In the environment, it can be waterproof and dustproof, and has reached the IP67 standard. 2.7 mm -
The 12mm AVF (automatic zoom) lens allows you to remotely select coverage areas
The domain.
The auto zoom/focus lens wizard makes it easy for the installer to make sure that it's night or day
Accurate zoom and focusing effects are obtained late. The wizard can be stimulated either by PC
Live, can also be activated through the on-board camera button, for flexible selection of the most suitable
The workflow.
The AVF (automatic zoom) feature means you can zoom without turning on the camera. Since the
The dynamic electric zoom/focus adjustment combined with a 1:1 pixel mapping ensures that the camera is always accurate
Focus.
function
Universal intelligent video analysis
Built-in video analysis strengthens the concept of cutting-edge intelligent technology and can now provide even stronger support
Big features. Essential Video Analytics is well suited to be in the probe range
Used in a limited controlled environment.
The system will reliably detect, track, and analyze objects and contacts in predefined alerts
I'll let you know when I send it. A series of intelligent alarm rules make complex tasks easy
Single and minimize false positives.
Add metadata to your video to add awareness and structure. This gives you
Correlogram can be quickly retrieved from video stored for up to several hours
Like. Metadata can also be used to provide irrefutable court evidence or based on population data
Optimize business process based on crowd density information.
Calibration is quick and easy - just enter camera height. Internal gyroscope/acceleration
The meter sensor provides additional information to accurately calibrate the video analysis.
High dynamic range
The high dynamic range mode is based on a multiple exposure process, even in the same scene
It also captures more detail in both high and low light areas. In this way,
You can easily distinguish between objects and features, such as faces with bright backlights
Department.
The actual dynamic range of the camera is according to IEC 62676 part 5 using light
Electrical conversion function (OECF) analysis of the measurement. You get one using this method
Standard results for comparison with other cameras.
Intelligent data flow reduces bandwidth and storage requirements
The low-noise image and efficient h. 265 compression technology provide a clear image of the
The camera has up to 80 percent less bandwidth than the standard h.264 camera
And storage requirements. In this new generation of cameras, the use of smart data streams,
Make cameras smarter. The camera subtly optimizes the detail bandwidth ratio,
Provides the most useful images. The smart encoder can continuously scan the entire scene to
And scene area, and according to the relevant information such as mobile dynamic adjustment compression. Combination can be
Intelligent is active in analyzing scene content and reducing noise artifacts accordingly
Dynamic Noise Reduction technology with an 80% Reduction in bitrate. by
The source noise is reduced during image capture and the bitrate reduction does not affect the image
Quality. This has resulted in a significant reduction in storage costs and network stress, while still maintaining the same
Maintain high image quality and motion smoothness.
Region-based coding
Zone-based coding is another feature that reduces bandwidth. You can at most
Eight user-defined locale compression parameters. This allows you to not highly compress
Areas of interest, leaving more bandwidth for important parts of the scene.
Optimized bit rate profile
The table shows the average typical optimized bits for various frame rates in KB /s
Rate:
FPS 5MP 4MP 3MP 1080p
30 1597 1210 864 600
12 1205 913 652 438
5 799 605 432 284
2 344 261 186 122
Multiple data streams
Innovative multi-stream capabilities provide multiple h.264 or h.265 data streams
And an m-‑ JPEG data stream. These data streams can help achieve bandwidth savings
For viewing and recording, and to facilitate integration with third-party video management systems.
The camera can run multiple independent streams of data, allowing for first and second
Each data stream sets a different resolution and frame rate. Users can also choose to use
A copy of the first data stream.
The third data stream USES the I frame of the first data stream; The fourth data stream is the most
High 10 Mbit/s bit rate display JPEG images.
Area of interest and e-ptz
User customizable area of interest (ROI). Remote e-ptz (electronic panning, pitching)
And zoom) controls allow you to select specific areas of the original image. These areas
Generates a separate data stream for remote viewing and recording. These data streams as well
Master data flow allows the operator to monitor the most interesting parts of a scenario separately
When, still can observe situation.
Two-way call and voice alarm
The two-way call function allows operators to communicate with each other via external audio line inputs and outputs
Visitors or intruders communicate. Audio detection can be used to generate a message if necessary
P.
Damage and movement detection
Multiple configuration options can be used to send alarm messages related to camera damage
Number. Built-in algorithms for detecting movement in video images can also be used to send alerts
The signal.
The sensor
Sensor type 1/2.9 inch CMOS
Sensor total pixel 3072 (horizontal) x 1728 (vertical); about
5.3 MP
Video performance - sensitivity
Sensitivity -- (3200K, reflectivity 89%, F1.3, 30IRE)
Color 0.369 lux
3 | nbe-5503-al Bullet 2MP HDR 2.7-12mm, automatic, IP67 IK10
Video performance - sensitivity
Black and white 0.035 lux
Including infrared lamp 0.0 lx
Video performance - dynamic range
High dynamic range 120 dB WDR
According to the
Part 5 of IEC 62676
measurement
108 dB WDR
The video stream
Video compression h. 265; H. 264; M - JPEG
Multiple configurable h. 264 or h. 265 and m-jpeg data streams
Data stream, configurable frame rate and bandwidth.
Area of interest (ROI)
Camera processing delay <55 ms (maximum mean value at 1080p30)
<65 ms (maximum mean at 5MP30)
GOP structure IP
Coding time interval 1 to 25 [30] FPS
There are up to 8 coding areas, each of which has the quality of an encoder
Set up the
The night vision
Distance: 60 meters (196 feet)
LED 4 LED efficient array, 850 nm
The lens
Lens type 2.7mm to 12mm auto zoom, DC aperture
F1.3-360.
Lens base panel mounting
The level of field of 28 ° to 95 °
16 ° to 50 ° vertical field of view
Order information
Nbe-5503-al Bullet 2MP HDR 2.7-12mm, automatic, IP67
IK10
IP bullet camera for outdoor MP monitoring, rugged and durable
H.265 and universal intelligent video analysis function.
The order number NBE - 5503 - AL
The attachment
LTC 9213/01 is suitable for vertical bar installation of LTC c9210, 9212 and 9215
assembler
Flexible pole mounting adapter for camera mounting (with proper wall mounting)
Use with bracket). Maximum weight 9 kg (20 LBS); 3 to 15 inches
Diameter of the pole; Stainless steel belt
Order number LTC 9213/01
