Product Numbers:VEZ-211-IWCEIVA
Price:0

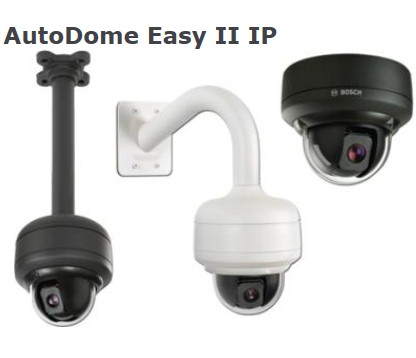

Product introduction:Bosch VEZ-211-IWCEIVA Indoor SD High-speed Ball Camera AutoDome Easy II IP with IVA Clear 10x Color PAL
Bosch VEZ-211-IWCEIVA Indoor SD High-speed Ball Camera AutoDome Easy II IP with IVA Clear 10x Color PAL
Optional standard, including high performance of h. 264 and JPEG
In under 4 CIF/D1 and CIF resolution high quality h. 264 compression
Triple video stream function to generate three independent IP video streams (synchronous transmission two h. 264 video stream and a JPEG video streaming)
Accord with standard of ONVIF
Embedded intelligent video analysis (IVA) function removes a dedicated PC and related software maintenance (optional)
Sturdy riot shell and spherical cap
Exquisite compact structure allows for indoor and outdoor venues for concealment type monitoring, and more beautiful
可选标准，包括高性能的 H.264 和 JPEG
| Imager | 1/4 in. Exview HAD CCD |
| (752 x 582 PAL)/(768 x 494 NTSC) | |
| Lens | 10x Zoom (4.2–42.0 mm) (f/1.8) |
| Focus | Automatic with manual override |
| Iris | Automatic with manual override (F1.8 to F2.9) |
| Field of View | Approx. 4.6° (TELE end) to 46° (Wide end) |
| Gain Control | AGC on/off (28dB max) |
| Synchronization | Internal/external |
| Aperture Correction | User adjustable |
| Horizontal Resolution | 530 TVL typical |
| Digital | 12x |
| Optical Zoom | 10x |
| Optical Zoom FOV | 4.6° to 46° |
| Sensitivity (typical) | 30 IRE |
| With Tinted Bubble* |
| SensUP Off | 0.83 lx |
| SensUP On (1/4) | 0.043 lx |
| *With optional clear bubble, approximately 0.6 F-stop improvement. | |
| SNR | 50 dB |
| White Balance | Auto, indoor, outdoor, 1 push |
| Standards | H.264 (ISO/IEC 14496‑10), M‑JPEG, JPEG |
| Streaming | Multiple, individually configurable streams in H.264 and JPEG,configurable frame rate and bandwidth |
| GOP Structure | I, IP, IPBB |
| Data Rate | 9.6 kbps to 6 Mbps |
| Resolutions and Frame Rates | |
| Name | NTSC |
| 4CIF/D1 | 704 x 480, 30 ips |
| CIF | 352 x 240, 30 ips |
| Overall IP delay | 240 ms |
| Frame rate | 1 to 50/60 (PAL/NTSC) |
| Network | |
| Protocols | RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP, SMTP, SNTP, SNMP, RTSP, 802.1x, iSCSI, DynDNS, UPnP |
| Ethernet | 100 Base-TX, auto-sensing, half/full duplex, RJ45 |
| Power over Ethernet (Indoor models only) | IEEE 802.3af |
| Unit Configuration | Via Microsoft Internet Explorer 7.0 Web browser or higher, Divar XF, Vidos, or Configuration Manager |
| Software Update | Flash ROM, remote update |
| Weight | 1.3 kg (2.86 lb) |
| Pan Range | 0-360° continuous |
| Tilt Angle | 0-94° |
| Variable Speed | 0.1°/s-120°/s |
| Pre-position Speed | Pan:360°/s Tilt: 100°/s |
| Preset Accuracy | ± 0.1° typ. |
| Rated Voltage |
| Camera, Indoor | 24 VAC ± 10%, 50/60 Hz orPower over Ethernet (IEEE 802.3af Class 3) |
| Camera, Outdoor | 24 VAC ± 10%, 50/60 Hz |
| Heater, Outdoor Models | 24 VAC ± 10%, 50/60 Hz |
| Power Draw: (typ.) | |
| Indoor Models | 12 W |
| Outdoor Models | Camera only: 12 WHeater only: 15 WTotal: 27 W |
| Operating Temp. | |
| Indoor Models | –10°C to 40°C (14°F to 104°F) |
| Outdoor Models | –30°C to 50°C (–22°F to 122°F) |
| Operation Humidity | 0% to 90% relative, non-condensing |
| Storage Temp. | –20°C to 60°C (–4°F to 140°F) |
| Environmental Rating | |
| Indoor Models | Rated for indoor use only |
| Outdoor Models | Rated for IP65 |
| Sectors/Titling | 8 independent sectors with 16-character titles/sector |
| Pre-positions | 99, each with 16-character titles |
| Guard Tours | Two (2) types of tours:•Recorded tours - two (2), total duration 15 minutes•Preset tour - one (1), consisting of up to 99 scenes, consecutively |
| Supported Languages | English, French, German, Spanish, Portuguese, Polish, Italian, Dutch, and Russian |
| Power | |
| PoE, Indoor Models | RJ-45 100 Base-TX Ethernet Power over Ethernet IEEE 802.3af Class 3 |
| Camera, All Models | 24 VAC, 50/60 Hz |
| Heater, Outdoor Models | 24 VAC, 50/60 Hz |
| Video and Control | RJ-45 100 Base-TX Ethernet |
| Alarm Input (2) | NC/NO |
| Alarm Output | Open collector NPN32 VDC @ 150 mA max |
| Material | Cast aluminum |
| Color | White or Charcoal |
| Size (Diameter x Height) | 6.02 in. x 4.61 in.(153.0 mm x 133.0 mm), Cast aluminum |
| Bubble | 4.0 in. (10.2 cm), Polycarbonate |
