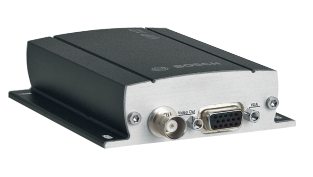

VIP XD can display the DVD quality of h.264, mpeg-4 and mpeg-2 encoding video from PAL or NTSC sources over IP networks at speeds up to 25/30 images per second. Video frequency connection is automatically established by encoder, decoder or Bosch integrated video management system. The VIP XD is set to display video in single view or four view mode. It can decode four MPEG‑4 video data streams simultaneously. The view mode is controlled remotely by VIDOS and other management systems. In addition, VIP XD can also drive VGA display directly, making it an ideal choice for applications such as screen wall of flat monitor. The VIP XD also provides an audio model to enable single-channel two-way audio communication synchronized with video. In addition to the standard line level interface, it also connects the built-in amplifier directly to the microphone and speaker. The appearance of the VIP XD is very compact, so it is very suitable for any situation with limited space. Basic function access security the VIP XD decoder provides various security levels for accessing networks, devices, and data channels. In addition to two-level password protection, they also support 802.1x authentication technologies that are identified using RADIUS servers. By using SSL certificates stored in the mount, you can use HTTPS to protect Web browser queries. To fully protect data, each communication channel - video, audio, or serial I/O - can independently adopt 128 bit key AES encryption technology after applying the encryption site license. Excellent performance it can transmit IP video to a high-performance VIP XD video decoder and then display the super-sharp video on a VGA monitor that simulates CCTV or a large-screen flat screen. The VIP XD can process up to four MPEG‑4 video streams at full resolution and frame rates and display them in a four-screen view. In a single-screen view, it can display h.264, MPEG 4, or MPEG‑2 video streams. Easy to upgrade when new firmware is released, remote upgrade of the VIP XD decoder can be performed. This ensures that the product is kept up to date, easily protecting the user's investment. Certificate and certified safety area code IEC 60950 electromagnetic compatibility area code EU en55103-1 video and audio equipment en55103-2 video and audio equipment en50130-4 alarm system
