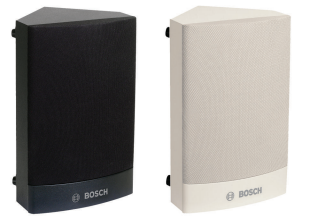

Lb1-cw06-x is an affordable 6 W universal speaker for indoor applications. It has two keyhole stands on one side that allow speakers to be easily and quickly mounted into corners of walls or between walls and ceilings. The speakers come in black or white. The MDF (medium density fiberboard) housing has a solid base function and is covered with durable and easy-to-clean vinyl film, providing both white and black styles. The front panel is made of ABS material and is covered with fine color matching speakers. The shape of the sound box is suitable for installing at the Angle between the wall and the corner between the wall and the ceiling. One side of the installation/configuration speaker box has two key hole supports for quick and convenient wall installation. The other side of the speaker box is equipped with two rubber legs for accidental vibration absorption and stable installation. Side with convenient and easy to use four-way pole push - in junction box, suitable for field wiring. The junction box provides a power tap connection for the 100 V matching transformer in the sound column. This allows the user to select the rated full power, half power, or quarter power radiation (increase by 3 dB). Size (unit: Mm) ~ Ø circuitry frequency response horizontal directivity diagram (pink noise is used to measure the vertical directivity diagram (using pink noise measurement) technology specifications electrical specifications * maximum power 9 W power rating orange-red / 1.5 W and 6 W / 1 W of sound pressure level (1 kHz, 1 m) 99 91 dB/dB (SPL) effective frequency range (10 dB) 180 Hz and 20 kHz open Angle 1 kHz / 4 kHz (6 dB) level 165 ° 95 ° 150 ° vertically / 75 ° rated input voltage 100 V rated impedance of 1667 ohms interface 4 needle into the junction box * technical performance data accord with IEC 60268-5 standard mechanical size high (deep) x width x 240 x 151 x 138 mm (9.5 x 5.9 x 5.6 inches) weight 0.8 kg (1.8 lb) (L) (D) or white color black box/veil (D) comply with the RAL 9004 standard cabinets/veil (L) RAL 9010 / RAL 7044 standard 2 | LB1 ‑ CW06 ‑ x install speakers corner working temperature environment specification - 25 DHS to 55 DHS C + C (13 DHS F to + 131 DHS F) - 40 storage temperature DHS C to + 70 DHS (C to + 158-40 DHS F DHS F) relative humidity < 95% order information LB1 ‑ CW06 ‑ D installed corner speakers corner speakers, 6 W, MDF front covered with fine woven cloth outer shell, black coating, applicable to the corner of the installation special modelling, the attached provide two stents with keyhole. Order number LB1 CW06 - D LB1 ‑ CW06 ‑ L installed corner speakers corner speakers, 6 W, MDF front covered with fine woven cloth outer shell, white coating, applicable to the corner of the installation special modelling, the attached provide two stents with keyhole. Order number LB1 - CW06 - L
