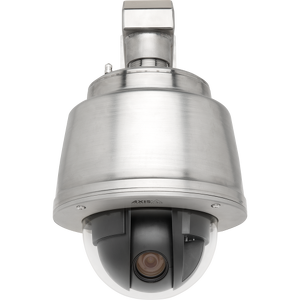

Axel AXIS q6045-s PTZ ball machine network camera
Supercharged stainless steel PTZ camera with resolution up to HDTV 1080p
Stop selling products. Support date to 2020-01-01
After this date, see the support documentation.
You can get support as long as the product is under warranty.
Replacement: AXIS q6045-s Mk II
Marine grade stainless steel
Suitable for pressurized nitrogen shell
HDTV 1080p and 20 times optical zoom
SFP fiber slot, RJ45 interface
I/O for alarm input/output
The AXIS Q6045 -s
Stainless steel and nitrogen design, widely used
AXIS q6045-s is a high-speed surveillance camera with a pressurised marine-grade stainless steel casing. This robust camera has horizontal/vertical rotation/zoom capability.
Uninterrupted work all day, with up to 1080 p HDTV clarity, 20 x optical zoom, are implemented by autofocus can turn 360 ° degrees and wide coverage area, to ensure an excellent ability to zoom in detail. This highly durable outdoor camera is ideal for many applications with its stainless steel and pressurized nitrogen design. It is not only suitable for monitoring and remote control of Marine, mining, oil and gas environment, but also can be used for indoor monitoring of food, medicine and clean room manufacturing equipment.
Highly durable
Thanks to its stainless steel (SAE 316L/V4A) case and transparent nylon dome cover, the camera is well protected against corrosion by sea water and cleaning chemicals. The camcorder's working temperature range for - 30 ° C to 50 ° C (- 22 ° F to 122 ° F), has passed the MIL - STD - 810 - g 509.5, IP6K9K, IP66, IP67 and NEMA 4 x authentication, can for salt fog, high pressure and steam jet cleaning, dust, rain, snow, ice and other bad environment to provide reliable protection.
AXIS q6045-s is also designed to be filled with nitrogen, a colorless, non-reactive, non-flammable gas that accounts for 78% of the earth's atmosphere. Nitrogen in a sealed environment has many functions such as preventing internal condensation.
The AXIS q60-s camera is filled with nitrogen through the air inlet valve (1). When the pressure in the camera reaches 0.5 bar (7 psi), the pressure relief valve (2) will open.
Intelligent video
AXIS q6045-s comes with built-in basic analysis capabilities, such as high-light compensation, target removal, fence detection, target statistics, and access detection. It also supports automatic tracking and active network protection. With the active guard function, the camera can automatically move to the preset position when the motion is detected in the predetermined area, and then track the detected target. The camera also provides sufficient capacity for intelligent video applications based on the amex camera application platform
Flexible installation and easy integration
AXIS T8605 media conversion switch
Thanks to the accompanying media conversion switch, AXIS q6045-s is able to connect to the network as a Daisy chain using standard network cables or fiber optic cables that help reduce the cost of remote camera installation. The media transfer switch also enables the camera to connect to an external alarm device via two configurable input/output ports and to a 12v power source.
The AXIS Q6045 -s
The AXIS q60-s PTZ hemispheric network camera is a high-speed surveillance camera equipped with a pressurised navigation class stainless steel casing. These cameras can turn 360 ° degrees and wide coverage area, excellent ability in detail amplification, is a Marine, mining, oil and gas, and food, health care and clean room manufacturing equipment in areas such as the ideal choice.
