Asx AXIS p3707-pe network camera
Flexible 360-degree multi-sensor camera
An 8 megapixel 360-degree multi-sensor camera with an IP address
Four zoom camera head with flexible positioning
Frame rate is 12.5/15 FPS 1080p video; Frame rate is 25/30 FPS 720p video; quadrature
Amex Zipstream technology
Ethernet power supply
Dedicated outdoor

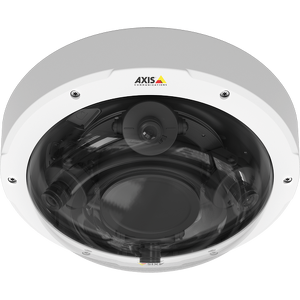

The AXIS P3707 - PE Network Camera
The AXIS P3707 - PE Network Camera
The AXIS P3707 - PE Network Camera
Panorama and close-up
AXIS p3707-pe network camera gets 360-degree panorama or panorama combined with close-up. The 8-megapixel multi-sensor fixed camera has four zoom camera heads and can capture scenes from all directions with a wide or enlarged view.
AXIS P3707 - PE is essentially four camera device, can provide large indoor and outdoor area monitoring economic and efficient solution, such as retail stores, shopping centers, warehouses, hotels, schools, lounge room, office, lounge and a car park. It is also ideal for use in foyer, aisle and road intersections and architectural corners.
Cost savings
With four camera heads in one body, AXIS p3707-pe is extremely cost-effective, with both price and performance comparable to the four standard zoom cameras. Since only one network cable is needed, not four, the installation is much easier. A cable also reduces the number of ports required on the switch. The fact that the camera has an IP address means that for most video management systems, it requires only one software license fee (not four). In addition, the camera is powered by Ethernet, eliminating the need to connect to a nearby power outlet. AXIS p3707-pe also has low power consumption with a maximum power of 5.5w.
Reducing the bit rate with Axis Zipstream
Ann - Zipstream
The camera supports the company's Zipstream technology, which is useful when using an 8-megapixel streaming video. Zipstream can realize more efficient implementation of h. 264 video encoder. It is suitable for a variety of monitoring scenarios and can reduce bandwidth and storage requirements by more than 50% on average. Coding techniques ensure that important details are retained when excessive compression of unnecessary data.
Flexible installation
The installer can optimize the view through each AXIS p3707-pe zoom lens to meet the monitoring requirements: the wide Angle is suitable for panoramic monitoring, and the long focus is suitable for larger images with clearer details. In order to achieve the best positioning, each camera head can be flexible sliding along the circular orbit + / - 90 °. Each camera head can also be tilted 28 ° to 92 °. In order to capture the direction of the vertical scenarios (e.g., long corridors and road), each camera head can rotate 90 ° to support - Ann and format of the corridor.
P3707 - PE Corridor Coverage
Rotatable camera heads: (A) the Line vertically positioned for discussing the Axis' Corridor Format for coverage of vertically oriented scenes to as hallways. (B) Horizontal position for standard 16:9 views.
P3707 - PE 360 Coverage
Under the cover: The four camera heads of AXIS P3707 - PE can together cover a 360 ° area, With each having a 108 ° horizontal field of view at Max. The wide and ° 54 at Max. The telephoto. (a) One RJ45 connector for the network cable. (B) Built - in microSD card slot.
The camera heads can be repositioned to fully cover The more than 270 ° area from The outer corner of a building.
Movable heads: The camera heads can be repositioned to fully cover The more than 270 ° area from The outer corner of a building.
P3707 - PE Corridor Coverage
Rotatable camera heads: (A) the Line vertically positioned for discussing the Axis' Corridor Format for coverage of vertically oriented scenes to as hallways. (B) Horizontal position for standard 16:9 views.
P3707 - PE 360 Coverage
Under the cover: The four camera heads of AXIS P3707 - PE can together cover a 360 ° area, With each having a 108 ° horizontal field of view at Max. The wide and ° 54 at Max. The telephoto. (a) One RJ45 connector for the network cable. (B) Built - in microSD card slot.
1
2
3
Two capture modes
AXIS p3707-pe USES AXIS 'Corridor Format to capture reflective oriented scenes in four different directions
AXIS p3707-pe USES the ansons corridor pattern to capture vertically oriented scenarios from four directions
With AXIS p3707-pe, video viewfinder mode can be set separately for each camera head, enabling you to optimize the resolution or frame speed of the four scenarios separately. The viewfinder mode determines the maximum resolution and frame speed for flow processing.
The 1080p viewfinder mode can achieve the maximum resolution of 1920 x 1080 pixels and the maximum frame speed of 12.5/15 frames per second (50/60 Hz). When the camera is located in the most wide position, it also supports the level of 108 ° view. Located in the largest telephoto position, it has 54 ° level vision.
The 720p viewfinder mode can achieve the maximum resolution of 1280 x 720 pixels and the maximum frame speed of 25/30 frames per second (50/60 Hz). When the camera is located in the most wide position, 720 p mode can realize the level of 67 ° view, the maximum zoom position which can realize the level of the 36 ° view.
The camera supports four-segment images, which are video streams captured and displayed by video in four quadrants through four camera heads.
High video quality
The AXIS p3707-pe camera has a specially designed transparent cover with smooth edges. This ensures that the images in all directions are clear and undistorted. With the help of four 1080p image sensors with a total of 8 million pixels, all four scenes can maintain high image quality. The camera also has good low light shooting performance and can provide color video under the low light condition of 0.3 lux.
The AXIS P3707 - PE Network Camera
Dedicated outdoor
AXIS p3707-pe has IP66 and NEMA 4X protection against dust, rain, snow, ice and corrosion. The camera can be installed in indoor or outdoor, its working temperature range for 30 ° to 60 ° C - C (- 22 ° F to 149 ° F). It also has IK09 impact resistance and can prevent damage.
AXIS p3707-pe is designed to be mounted on the ceiling with a ceiling bracket attached. The camera can also be mounted on a corner of a building or on a pole and rail using the AXIS T94M02D suspension suite and most AXIS T91 installation accessories. The suspension kit provides a weather proof cover and an installation adapter. The suite and AXIS T91 accessories are sold separately.
