Asx AXIS FA series
Flexible, high performance module camera
High cost performance multi-view monitoring
Flexible, ultra - hidden system can be used indoors
4-channel host
Select standard and zoom sensor units
Four sensor units provide HDTV 1080ps full frame speed video stream
WDR wide dynamic hunting technique
Ann - Zipstream
The AXIS FA SeriesAXIS FA54
The AXIS FA1105
The AXIS FA4115
The AXIS FA Series
A camera system can cover four scenes
High cost performance multi-view monitoring
The AXIS FA series is an affordable series of high-performance module cameras that can be used for multi-view monitoring, allowing you to use an IP address to cover four adjacent indoor areas. Ideal for use in shops, Banks, offices and airports.

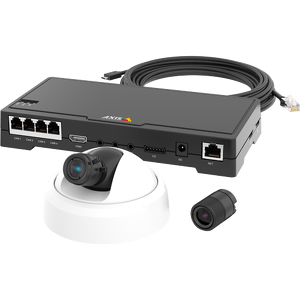

The series includes a 4-channel host and two sensor units (one with a standard lens). The other is equipped with a zoom lens. The host can be connected to four sensor units and has a powerful processor, which can synchronously stream all four sensor units at full frame speed HDTV 1080p video. It also supports wide dynamic range (WDR), Zipstream, analysis, HDMI connections, audio, input/output ports, and local storage. An AXIS FA system can reduce the total cost.
The series comprises one four - channel main unit and two sensor units (one with a standard lens; The other, a varifocal lens.
The main unit can connect to four sensor units and has a powerful processor that can stream full frame rate HDTV 1080p videos from all four sensor units simultaneously.
Together with support for wide dynamic range (WDR), Zipstream, analytics, HDMI connection, audio, input/output ports and local storage, The an AXIS FA Series system delivers a total cost of ownership that feels like a bargain.
Concealed and flexible
The AXIS FA1105
Like all modular camera systems, the AXIS FA series is extremely secretive and flexible. It is based on the concept of a segmented network camera, in which the camera is divided into sensor units (including lens and image sensors) and mainframe (camera body). The unit is connected by a cable that provides power to the sensor unit.
The thumb-sized sensor unit can be concealed by mounting on the horizon or in the desired compact position. The long cable from the sensor unit to the host allows you to flexibly place the host in the gap.
For the AXIS FA series, the host and sensor units are sold separately, so you can select the sensor units that are most appropriate for your application. Note that the host and sensor units in the AXIS FA series cannot be used in conjunction with the host and sensor units in the AXIS F series.
Excellence details
An AXIS FA system can stream full-frame HDTV 1080p video, so you won't miss any details or actions. It also supports the wide dynamic hunting technology of anxun's WDR. The WDR wide dynamic shadow hunting technique in the AXIS FA series prioritizes dark areas in high-contrast lighting scenarios, such as backlighting scenarios where people stand in front of a very bright background. In such a scenario, the portraits captured by traditional cameras that do not support wide dynamic range are darker. AXIS FA products that support WDR wide dynamic shadow hunting technology can make the colors and details in the darker areas more visible. WDR technology in the AXIS FA series is also optimized for movement, so there is no moving artifacts when moving objects rapidly through. In low light Settings, the AXIS FA series system provides excellent color video with low noise.
WDR off WDR on fa54 fa1125
There is no WDR (left) comparison with WDR wide dynamic shadow hunting technology (right) : using AXIS FA series WDR wide dynamic shadow hunting technology, colors and details in darker areas can be more clearly seen.
Keep the total cost down
AXIS FA series systems with four HDTV 1080p sensor units are generally cheaper than four standard HDTV 1080p cameras with similar functions. If four sensor units use only one Ethernet cable, you can reduce your network port requirements and save the network switch costs. In addition, if you use an IP address, you can only need a single video management software (VMS) license to view video on four sensor units.
AXIS FA series systems also save bandwidth and storage requirements. Amex Zipstream technology, for example, can effectively encode h.264 video streams, reducing storage and bandwidth requirements by up to 50 percent or more while retaining important details. The use of supported analysis (for example, video mobile detection, tamper-proof alarm, and other analysis that is compatible with the amex camera application platform) also helps reduce bandwidth and storage usage.
The AXIS FA1105 Sensor Unit
The AXIS FA1105 Sensor Unit
AXIS FA4115 Dome Sensor Unit
AXIS FA4115 Dome Sensor Unit
The AXIS FA54 Main Unit
The AXIS FA54 Main Unit
Connection to no. Of sensor units 4
Maximum video resolution 1920x1080 1920x1080 1920x1080 1920x1080
Zipstream
Wide dynamic technology WDR Forensic WDR Forensic WDR Forensic WDR
Two-way audio
Alarm input/output 4
Asensor camera application platform
Refresh memory (memory card slot)
Horizontal field of view 111, 99-53
Zoom lens
Minimum illumination/sensitivity (color) 0.2
