Technical parameters and installation dimensions of m0814-mp2 | 8mm focal length



Scope of application: machine vision, industrial automation, intelligent transportation, road monitoring
Capture all resolution of megapixel camera;
Low deformation rate (less than 1.0%);
It has focus anddiaphragm locking adjusting screws;
High contrast and clear images throughout the screen range;
● compact design (diameter: 35.5mm);

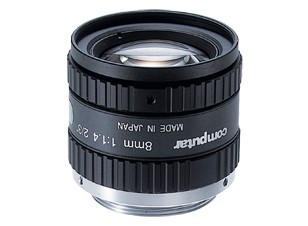

Computar industrial lens model m0814-mp2
Target size 2 / 3 ″
Focal length (mm) 8mm
Imaging size (8.8 mm) max
F-stop f1.4 ~ f16c
Minimum object distance (m.o.d) (m) 0.1M
Control aperture manual
Focus on manual
The minimum object distance is 2 / 3 ″ 10.7 × 8.0
Field of view
（H x V cm） 1/2″ 8.7×6.5
Field of view (dxhx V) 2 / 3 ″ 61.7 × 56.3 × 43.7
1/2″ 51.9×42.5×32.4
1/3″ --
Resolution (Center / corner) 100 LPM
Deformation rate 2 / 3 "- 0.1% (y = 5.5)
1/2″ -1.1%(y=4.0)

1/3″ --

Rear focal length (mm) 13.1
Interface C-interface
Filter thread (mm) m30.5 × 0.5
Size (mm) Φ 33.5 × 28.2
Weight (g) 70
Working temperature - 20 ° C to + 50 ° C
