Utodome series cameras represent the latest development of

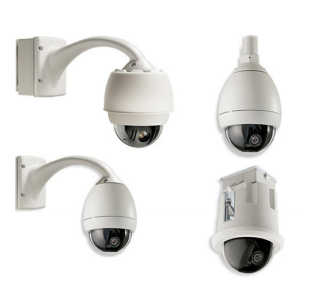

 video monitoring technology. The camera has been completely assembled in the ceiling type protective cover at the time of shipment. Bosch provides a series of bases, power boxes and accessories, so that you can install them according to your actual application and environment. These items can be sold separately, so you only need to buy the items you need, which can save you money and simplify the purchase. System overview installation options and support kits Bosch provides a series of installation options and support kits, allowing you to install autodome according to the actual needs of various environments. Lifting autodome indoor / outdoor lifting guards can be attached to the lifting arm, roof or pipe base. The base of the lifting arm can be purchased together with the power box, or it can be purchased separately with the lifting arm connected with wires. All jib bases can be attached to corner or pole (mounting rod) adapters to extend mounting options. In addition to the boom base, Bosch also provides pipe base and roof rail base. The pipe base allows the autodome lifting shield to be connected to a 1-1 / 2-inch (NPS) pipe (provided by the user). The base of the roof guard rail is an aluminum mounting rod used to fix the lifting autodome to the roof surface. In addition, there are other accessories that can fix the guardrail base to the flat roof surface. Embedded ceiling support kit if the autodome built-in ceiling guard is installed to a gypsum ceiling, no accessories are required, but support kits can be purchased for special installation needs. For suspended ceiling, Bosch's kits provide the necessary support to secure the embedded ceiling guard to the ceiling insert. Bosch also offers other kits that provide IP54 compliant water and dust protection for the 100 / 600 series of flush mounted installations, while the autodome 7000 flush mounted series meets IP54 without additional purchase. Power supply Bosch provides a variety of independent power boxes, including models without transformer (for 24 VAC power input) and models with 120 VAC or 230 VAC transformers. Each power box is capable of providing 100 watts of output; the enclosure of the power box conforms to NEMA standards. In addition, it also provides decorative frame and cover replacement for power box. Fiber kit vga-fiber-an (multimode) is an analog fiber conversion kit that works with series 100 and 600 autodome. The module is a video transmitter / data receiver module designed for direct installation in the autodome power box. Vg4-sfpsckt is a unique media converter module suitable for use with 7000 series autodome. The media converter is designed to accommodate a variety of 10 / 100 Mbps small form factor pluggable (SFPs) modules for use with multimode or single-mode fiber with LC or SC connectors. Both the media converter module and the SFP module can be installed directly into the power box of autodome to provide an integrated optical fiber solution. Ball type cover Bosch offers a variety of ball type covers suitable for embedded ceiling type and lifting protective cover. The autodome replacement ball cover is made of polycarbonate or acrylic plexiglass. (ik10 compliant dome is made of polyamide fiber.) The durable polycarbonate ball cover has high impact resistance. Although the surface is soft, its optical transparency is comparable to glass or acrylic plexiglass. Acrylic plexiglass ball cover can improve the clarity of high-definition image, but the intensity is low. Ik10 compliant dome provides anti riot performance and high definition image definition. The transparent spherical cover allows maximum light access, so it has the highest sensitivity. It is difficult to see the direction of the camera from the outside, so it has strong concealment. Autodome's rugged polycarbonate and ik10 compliant dome protects the camera from vandalism. Designed to meet strict strength standards and without affecting optical transparency, these rugged, durable spheres can withstand a maximum impact equivalent to the force produced by a 4.5 kg (10 lb) object falling from 3 m (10 ft). Installation / configuration instructions autodome series cameras provide assembled ceiling mounted or flush mounting specifications. These devices are not packaged with hardware or accessories, so you can choose only the parts you need for your application and environment. The hoisting protective cover must be installed on the hanging arm or pipeline with the following options. A variety of mounting accessories are also available to extend these mounting options for a wide range of applications. Vga-pen-arm hanging arm base with wire, without power box vg4-a-9543 pipe base for 1-1 / 2 inch (NPS) pipe base vga-roof-mount roof base with lifting function only (additional purchase of vg4-a-9543) lifting base accessories instructions for vga-pendwplate mounting plate vga-pen-arm vg4-a-9541 pole (pole) mounting adapter vg4-a-9542 Corner mount adapter LTC 9230 / 01 flat top mounting adapter plate vga-roof-mount embedded ceiling support kit embedded ceiling guard can be installed on gypsum ceiling out of the box, but Bosch offers a variety of kits to connect the embedded ceiling guard to the ceiling panel. These kits can also add IP54 environmental protection function to these shields. Package support description
