SONY RC-S380/S SONY NFC card reader instead of RC-S330 card reader

SONY SONY RC-S380/S NFC card reader instead of RC-S330 card reader


RC-S380 / product to communicate both NFC BBS specifications and all kinds of non-contact IC card equipment, including smart ™ and ISO/IEC 14443 / Type B.

This product can be used in Windows client thin client terminal and fat client terminal.

Characteristics of the

Suitable for all kinds of contactless IC card.

Read/write ability to get its FeliCa card/get its FeliCa compatible device and ISO/IEC 14443 type A/B card.

Compatible with Windows embedded

Compatible with Windows embedded standard 7 SP1, Windows package embedded POS to 7, 8.1 industry and Windows package inserts.

In accordance with PC/SC 2 specification

Application of PC/SC provide interface access to get its FeliCa card and ISO/IEC 14443 type A/B card.

Main virtualization support system for safety thin client environment

Suitable for terminal login authentication and so on, in the main virtualization system using IC card to implement security thin client environment.

Detailed information about the environment, please refer to the thin client environment.

Radio method in different countries/regions

RC - S380 is comply with the following countries and regions of broadcasting law:

Us/Canada/EU/South Korea/Taiwan/Hong Kong/Singapore/Malaysia/Thailand/Vietnam/Philippines/Indonesia /

Saudi Arabia/China (Chinese model)/Japan.

Application development environment

The following software development kit (SDK) series support development all kinds of application software of the operating system to control the reader:

For the Windows operating system NFC Lite SDK

ISO/IEC 14443 type A/B card application development support, and to get its Felica card/wallet get its Felica compatible devices and mobile phones (Osaifu hurry).

The Windows operating system NFC portal toolkit

This free browsing and assessment of the SDK provides a functional part of the SDK, NFC lite

The SDK nfcfor embedded devices

Other widely used operating system, such as Linux, in portable C language source code of reference provides the development of ISO/IEC 14443 type A/B card application, as well as to get its Felica card/wallet get its Felica compatible devices and mobile phones.


Product specification

RC-S380

Regulatory requirements ・ Japan: No. : AC - 12005

・ USA: the FCC ID: AK8RCS380

・ Canada: IC Certification No. : 409 b - RC-S380

・ Europe: CE R&TTE (1999/5 / EC)

As for the other regulation requirements, both please contact us.

Communication distance (per card and equipment) * 1 Approx. 5 mm, short from the external surface of the device) * 2

Communications speed (106 KBPS/card and equipment), 212 KBPS and 424 KBPS

Communication way Compliant with ISO/IEC 18092 (212 KBPS / 212 KBPS Passive communication mode)

Compliant with ISO/IEC 14443 (Type A/B Type)

API PC/SC Ver. 2.0, Near Field Proximity API, get its FeliCa library

Suitable for card and equipment ・ get its FeliCa Standard

・ get its FeliCa Lite

・ NFC Dynamic Tag (get its FeliCa plug-in)

・ Mobile get its FeliCa IC Mobile phone

・ Pico Pass

・ MIFARE Classic

・ MIFARE Ultralight/Ultralight C

・ MIFARE DESFire/DESFire EV1

・ MIFARE Plus

・ Topaz/JEWEL

・ ISO/IEC 14443 Type A/Type B

・ ISO/IEC 14443-4 Type A/B Type (T = CL)

・ NFC Forum Tag 1, 2, 3, 4 a, 4 b

Carrier frequency (13.56 MHz each card/equipment) (plus or minus 50 parts per million (PPM)

Working temperature/humidity (no condensation) 5 ~ 35 DHS C / 10 ~ 90%

Storage temperature/humidity (no condensation) - 20 ~ + 60 DHS C / 10 ~ 80%

Weight Approx. 36 g (excluding the USB cable)

Overall dimensions (w) x x x D Approx. 60 mm x 110 mm x 11 mm

The external interface of USB (full speed)

USB cable length of Approx. 1 m

Working voltage DC 5 v (supplied via USB)

Current consumption Max. 200 ma during operation

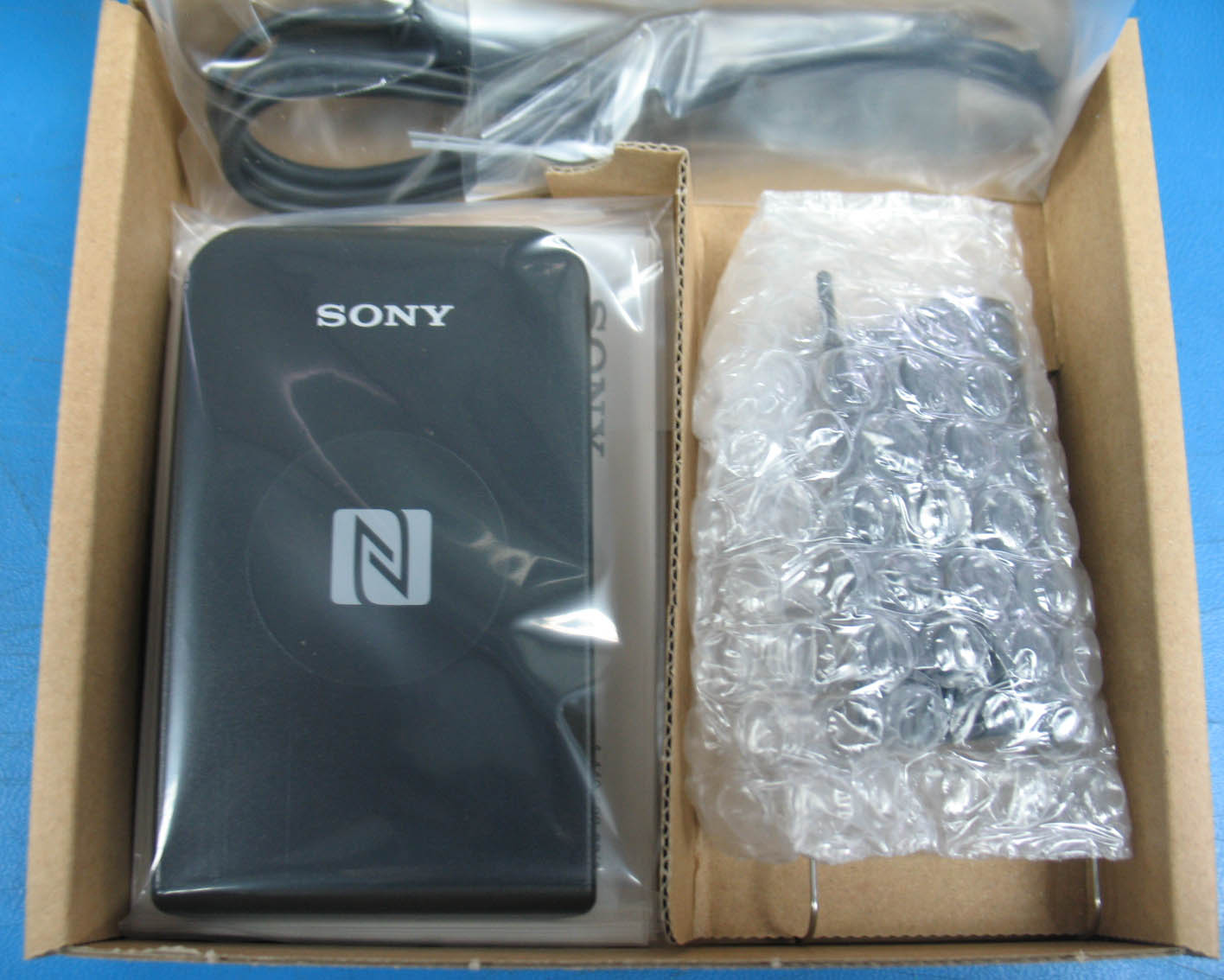

Contains an attachment Instruction manual, the Cardholder, dedicated stand, the USB cable
